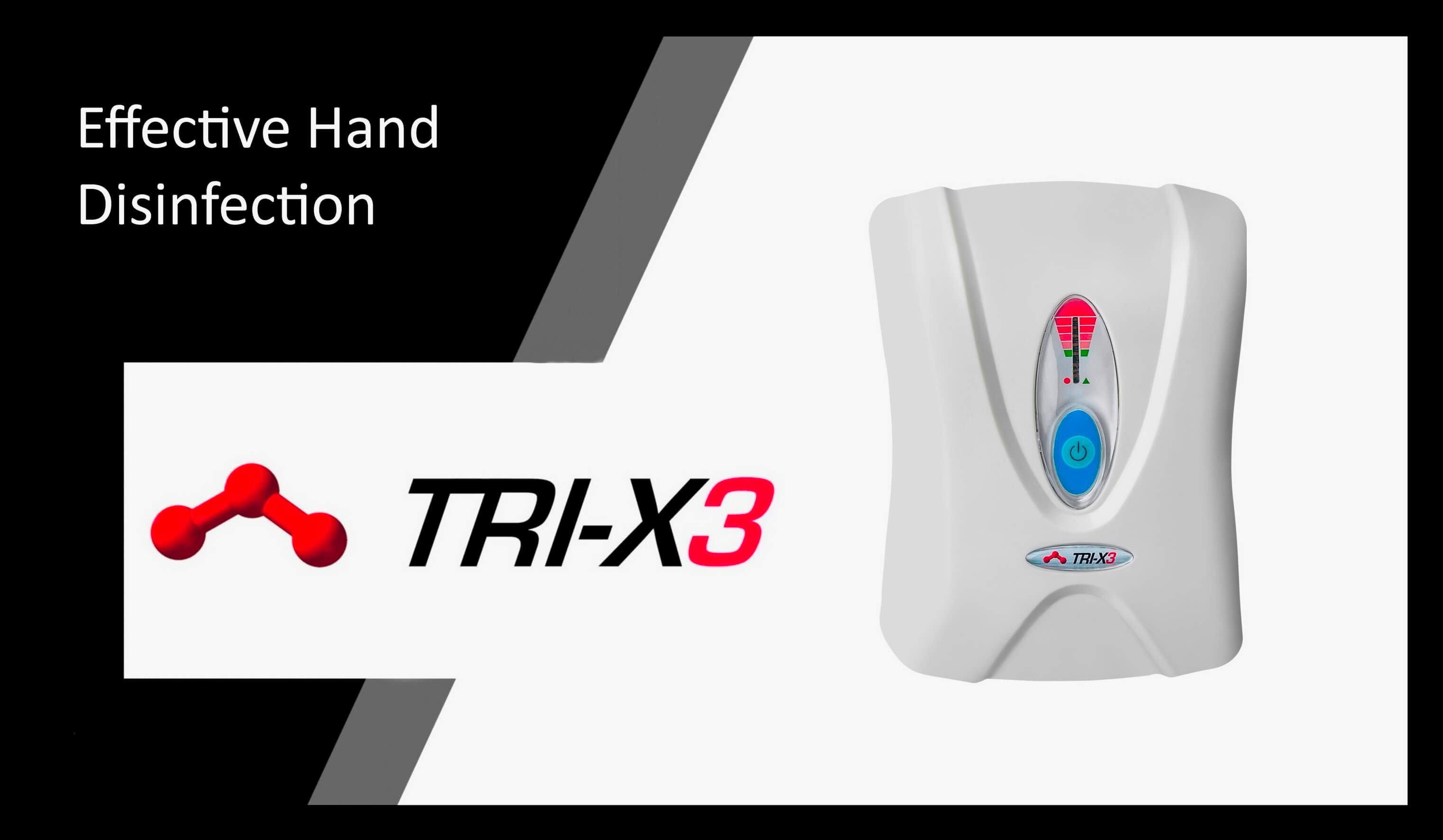

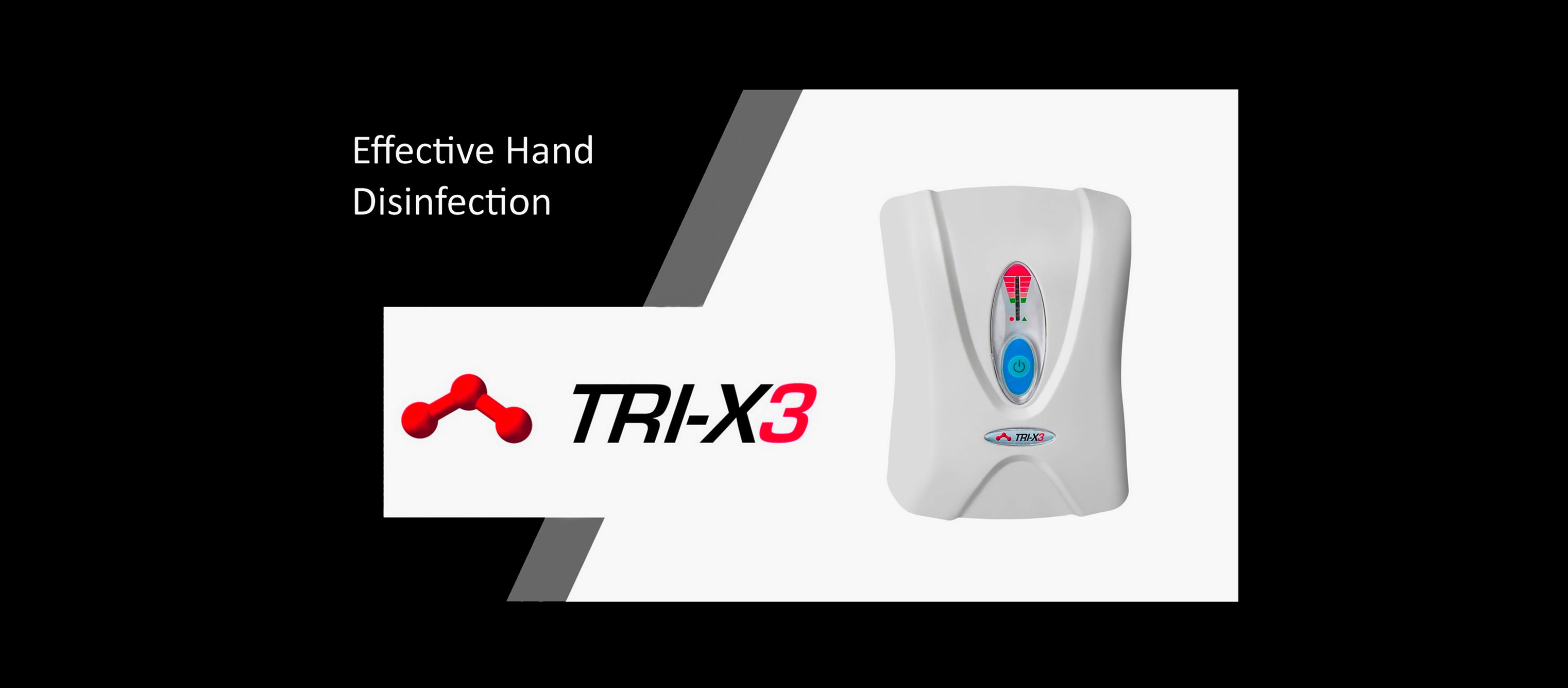

TRI-X3 - Hand Disinfection
Additional Information
TRI-X3 Winery Application
Download PDFTRI-X3 - Hand Disinfection
Unmatched Hygienic Safety
More infection is spread through hand contamination than anything else. Washing your hands with OZONE INFUSED WATER eliminates a multitude of dangerous pathogens and viruses in only 10 seconds.
- POWERFUL AND EFFECTIVE – Test results by the Bodycote Testing Group show a bacteria kill of 99.999% in just 10 seconds.
Instructions
The TRI-X3 Ozone Infuser can be installed in about 15 minutes. Anyone capable of removing and replacing a faucet aerator can install the TRI-X3 Ozone Infuser.
- The unit is mounted on a wall close to a hand wash basin. Three Mounting options are provided.
- The faucet aerator is removed and replaced with our custom aerator which has a Venturi fitting to enable the micro-processor to detect the flow of water which activates the ozone generator.
- The silicon tube supplied is then routed between the new aerator and the TRI-X3 ozone infuser. Self-adhesive tube mounts are supplied.
- Following the installation, the ozone infuser’s UL listed power adaptor can be plugged in, and the Ozone Infuser switched on.
- Ozone infused water is only generated when a faucet is opened and shuts off automatically when a faucet is closed.
- 5 LEDs change color from Red to Yellow to provide a visual indication that ozone infused water is being produced.
Specifications
- Micro-processor controlled automatic activation system.
- 5 Adjustable ozone concentration levels.
- LED visual indication of ozone production.
- Power Requirement - DC 12 volts
- Power Consumption – 6W
- Net Weight 380g
- Ozone Production – 50 to 150 mg/h
- Safety Device – 10 minute automatic power down. (Applies if a faucet is accidentally left running.)
